120 Sq. Yds. | Cordoba,Valencia & Florence | 5 Room Villas 120 Sq. Yds. | Cordoba,Valencia & Florence | 5 Room Villas
BACKYARD AREA ACCOMMODATION
24’ x 3’
GROUND FLOOR PLAN / AREA 822.00 (sq. ft.) BEDROOM
1-Bed with attached Bath 12’ x 17’
Drawing, Lounge, Kitchen, Front Lawn, Car Porch BATH
BATH 5’ x 9’-6”
7’ x 5’ FIRST FLOOR PLAN / AREA 830.00 (sq. ft.)
2-Bed with attached Bath
Lobby, Terrace,Roof
BATH
STAIR TOWER 134.00 (sq. ft.) 5’ x 9’-6”
BEDROOM GRAND TOTAL AREA 1786.00 (sq. ft.)
12’ x 11’-6”
KITCHEN
9’ x 10’ PLOT 24’ 0” PLOT
24’ 0”
FOYER 45’ 0” 24’ x 3’ 45’ 0”
OPEN
12’-6” x 9’-6” BEDROOM
WIDE LOBBY
BATH 10’-6 x 16’-6” BED
7’ x 5 3’-6” 12’ x 17’
BATH BATH
KITCHEN 5’ x 9’-6” 5’ x 9’-6”
9’ x 10’
CAR PORCH
9’ x 14’-6”
LOUNGE
10’ 6” x 16’-6”
BED
LOUNGE
12’ x 11’-6” 10’ 6” x 16’-6” TERRACE
PLOT UP PLOT 14’-6 x 11’-6” PLOT UP 3’-6” WIDE LOBBY PLOT
BED
DRAWING FOYER DN 10’-6 x 16’-6”
14’ x 11’ P. ROOM 12’-6 x 9’-6”
3’-2”
x 5’-2”
PARKING DN DRAWING
9’ x 14’-6” 14’ x 11’
MAIN ENTRANCE
TERRACE
FRONT LAWN 14’-6 x 11’-6”
15’ x 3’
LAWN
15’ x 3’

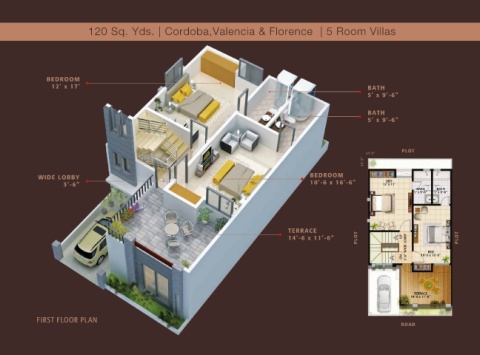

GROUND FLOOR PLAN FIRST FLOOR PLAN ROAD
